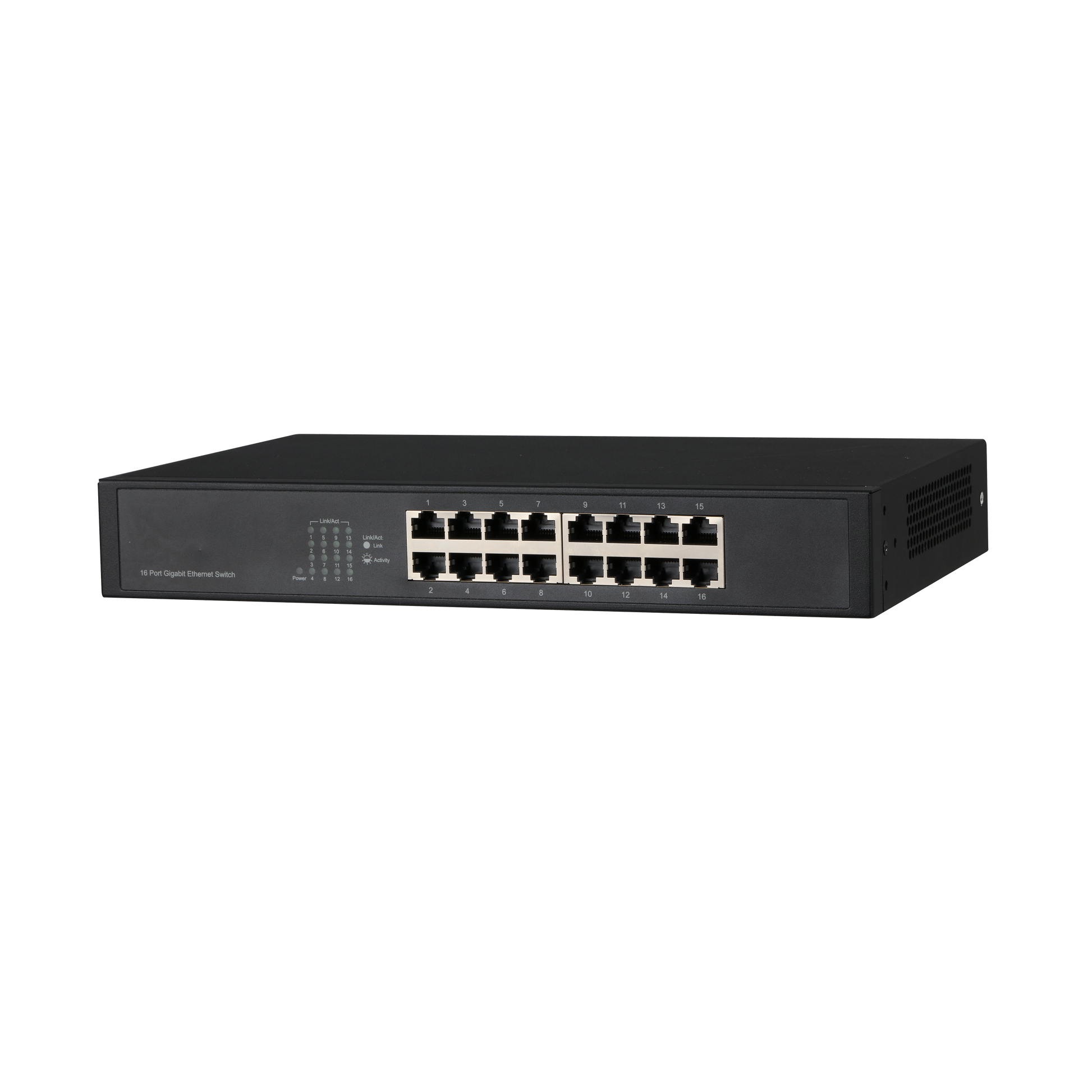

Dahua DH-PFS3016-16GT 16-Port Unmanaged Gigabit Switch

DH-PFS3016-16GT
Dahua 16-Port Gigabit Switch (Unmanaged)
FEATURES
• Expand your CCTV network effortlessly with the Dahua DH-PFS3016-16GT: 16 Gigabit ports, 32 Gbps capacity, and lightning protection for stable, high-speed IP camera connectivity.
• Fanless metal build ensures quiet 24/7 operation in Australian offices, homes, or racks with plug-and-play simplicity.
• Robust performance without configuration.
• The Dahua DH-PFS3016-16GT is a Layer 2 unmanaged switch with 16 × 10/100/1000 Mbps Gigabit Ethernet ports, delivering 32 Gbps switching capacity and 23.8 Mpps forwarding rate for high-bandwidth IP surveillance networks.
• Its store-and-forward mode, 2 Mbit buffer, 8K MAC table, and metal enclosure ensure reliable, plug-and-play operation with fanless cooling and lightning protection (6KV common, 0.5KV differential).
• Universal power (AC 100-240V, 50/60Hz), operates 0°C to +40°C (10-90% RH, non-condensing).
• Compact rackmount/desktop design (294 × 178 × 44 mm, 1.36 kg) for easy installation.
• Supports IEEE 802.3/802.3u/802.3x/802.3ab standards; no PoE, ideal for NVR/camera expansions.

• Layer 2 unmanaged access switch
• All gigabit Ethernet ports
• Lightning protection
• Plug and play
• Adopts metal enclosure
• Good heat dissipation
• Ethernet Port: 16*10/100/1000 Base-T
• Switching Capacity: 32G
• Packet Forwarding Rate: 23.8Mpps
• Packet Buffer Memory: 2Mb
• MAC Table Size: 8K
• Exchange Mode: Store & forward
• Application Humidity: 10%~90%
• Power: AC:100-240V; 50/60Hz
• Lightning Protection: Common Mode 6KV, Differential Mode 0.5KV
• Working Temperature: 0°C~+40°C
• Weight: 1.36kg
• Dimension(W×D×H): 294mm x 178mm x 44mm

Data Sheet PDF
