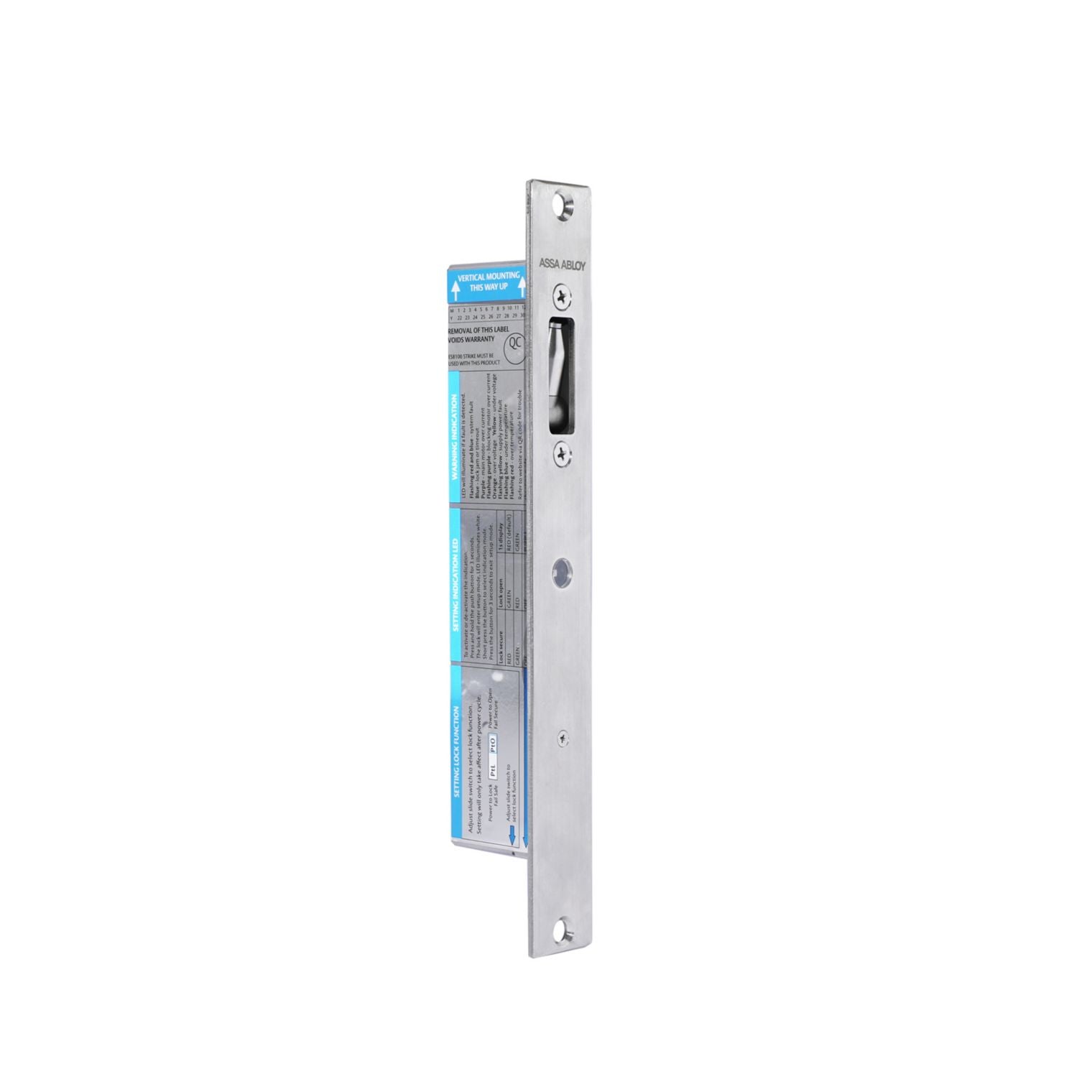

Assa Abloy ES8100 V-Lock Glass Door 11.4-28VDC Monitored

Assa Abloy V-Lock Glass Door Bracket
ES8100
FEATURES
• Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
• Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
• 1000kg Holding Force
• IP53 rated for external door applications
• Door Position and Lock Status Monitoring
• On-Board visual Lock Status indication and diagnostics LED
• Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
• Optional Surface / Glass mount Kit
• May be mounted vertically or horizontally (must not be mounted in the floor)
• Allows for door misalignment of up to 12mm total (+/-6mm)
• Operating voltage: 11.4 - 26VDC
• Durability tested to 500,000 cycles (120N unlocking, 50N locking)

 SPECIFICATIONS
• Voltage: 11.4 - 26VDC
• Current: Peak Current: 1000mA, Idle Current: 35mA @12VDC with LED activated
• Unlocking Pre-Load: Side Load rated: Motorised unlocking - 100kg max at the bolt
• Strength: Maximum 1000kg
• Monitoring: Lock Status Monitoring: NO/NC, Door Position Monitoring: NC
• Unlocking Time: 1 Second under Preload
• Locking Time: 3 Seconds
• Environment: Weather resistant construction to IP53
• Operating Temperature: -10 to +60 Degrees Celsius
• Endurance: 500,000 operations (120N Unlocking, 50N Locking)

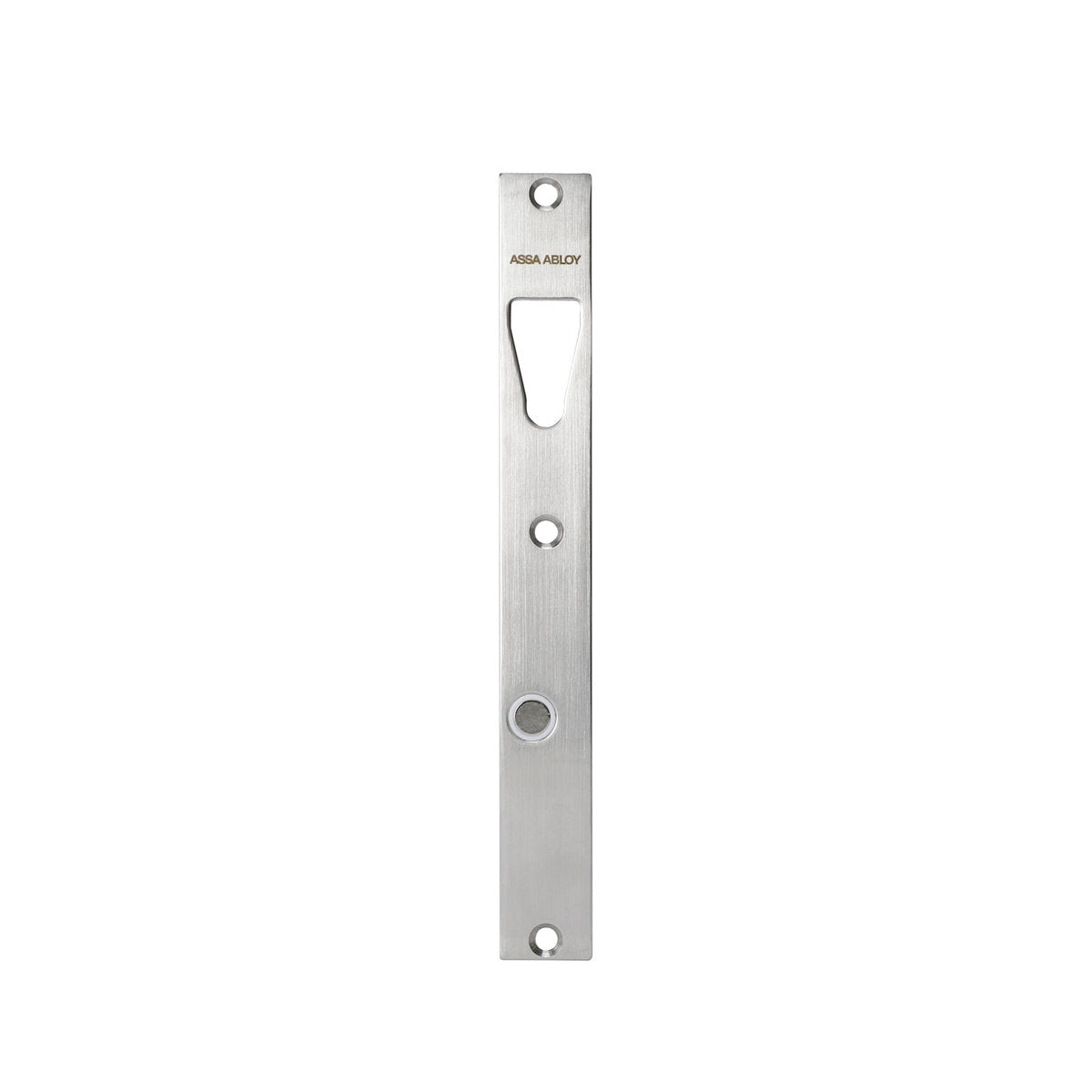

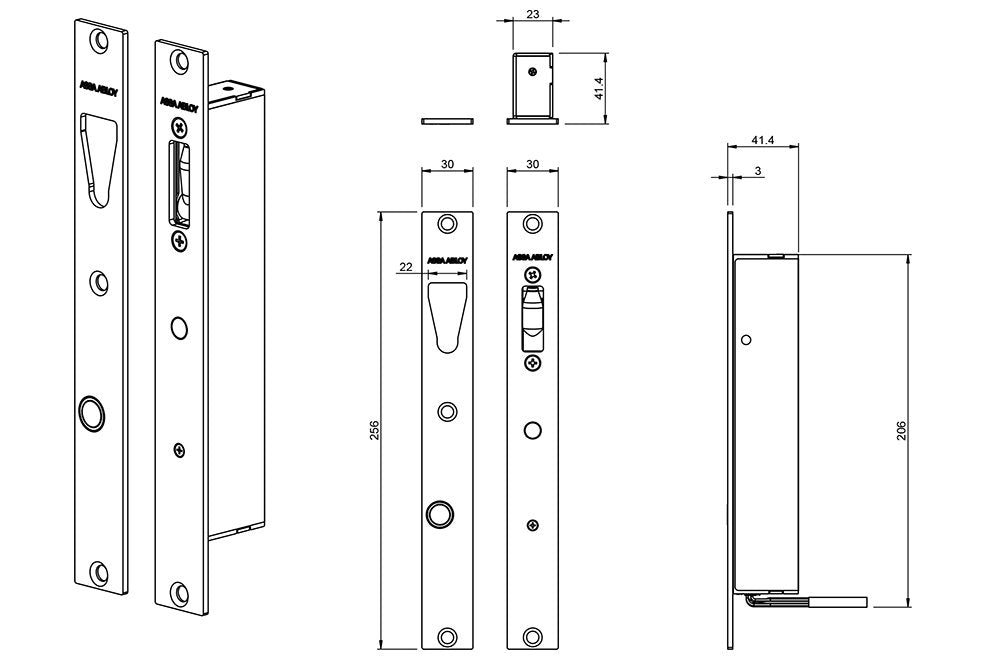

• Dimensions: Body: 210L x 24W x 42D (mm), Faceplate: 256L x 30W (mm), Strike Plate: 256L x 30W (mm)
• Construction: Stainless Steel lock body, Face plate and Strike Plate
