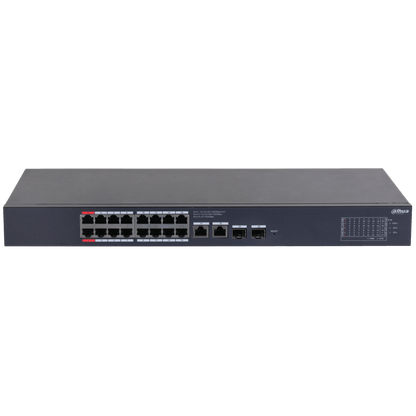

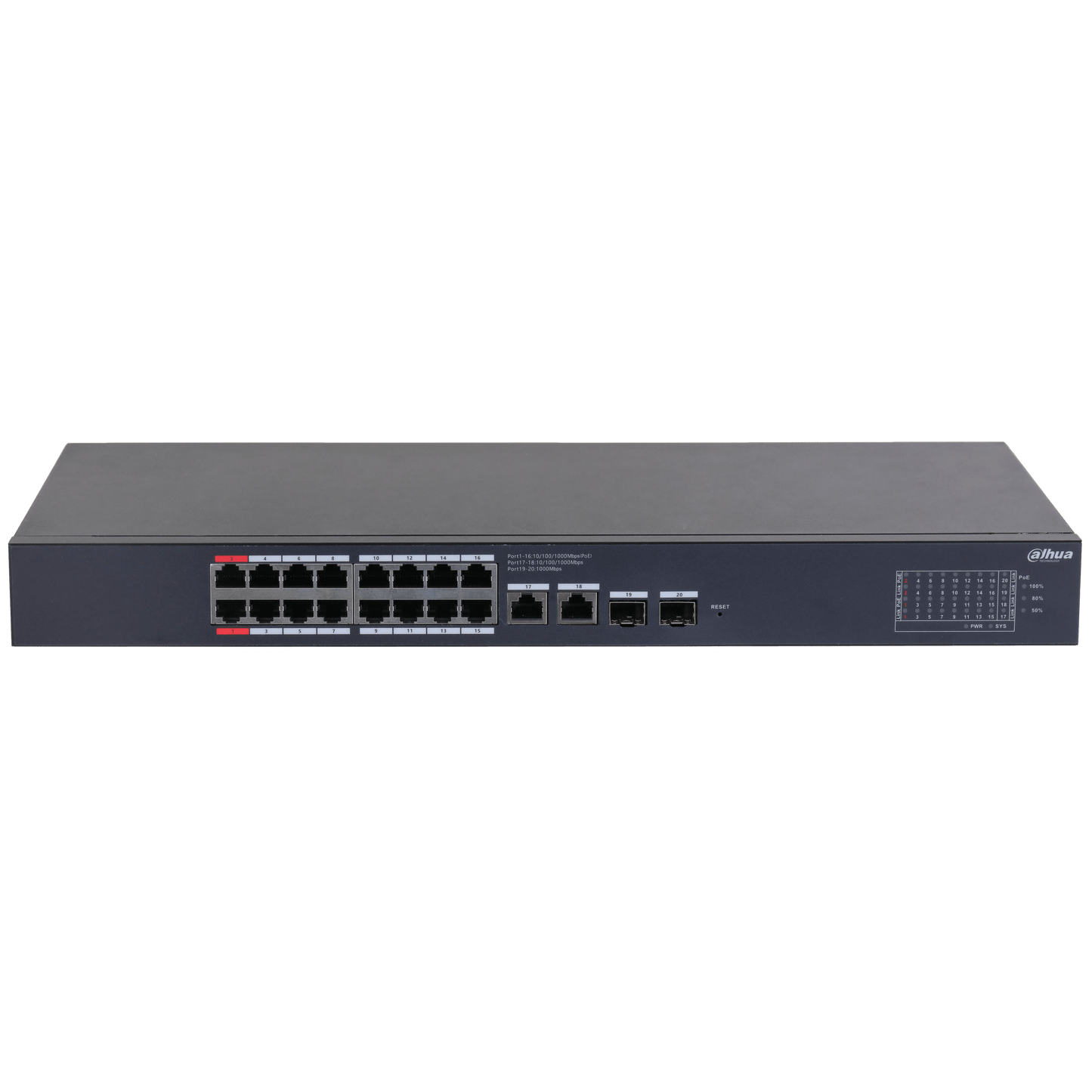

Dahua DH-CS4218-16ET-190 18-Port Cloud Managed Desktop Switch with 16-Port PoE

DH-CS4218-16ET-190
Dahua 18-Port Cloud Managed Desktop Switch with 16-Port PoE
FEATURES
• Included Power Adapter
• PoE
• Ethernet Port 16
• Ethernet Port Speed 10/100 Mbps
• Optical Port Speed 1000 Mbps
• Ethernet Port Uplink Speed 10/100/1000 Mbps
• Optical Port Uplink Speed 1 Gbps
• Description of Function
• Slots
• Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18:
• 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 ×
• SFP 1000 Mbps (combo)
• Reset Button 1
• Power Supply Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
• Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity 5%–95% (RH), non-condensing
• Storage Temperature–40 °C to +70 °C (–40 °F to +158 °F)
• Storage Humidity 5%–95% (RH), non-condensing
• Power Consumption Idling: ≤6 W ; Full load: 212
• Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
• Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
• A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Data Sheet PDF

Dahua Ethernet Switch (Cloud Managed Switch)_Quick Start Guide_V1.0.1
