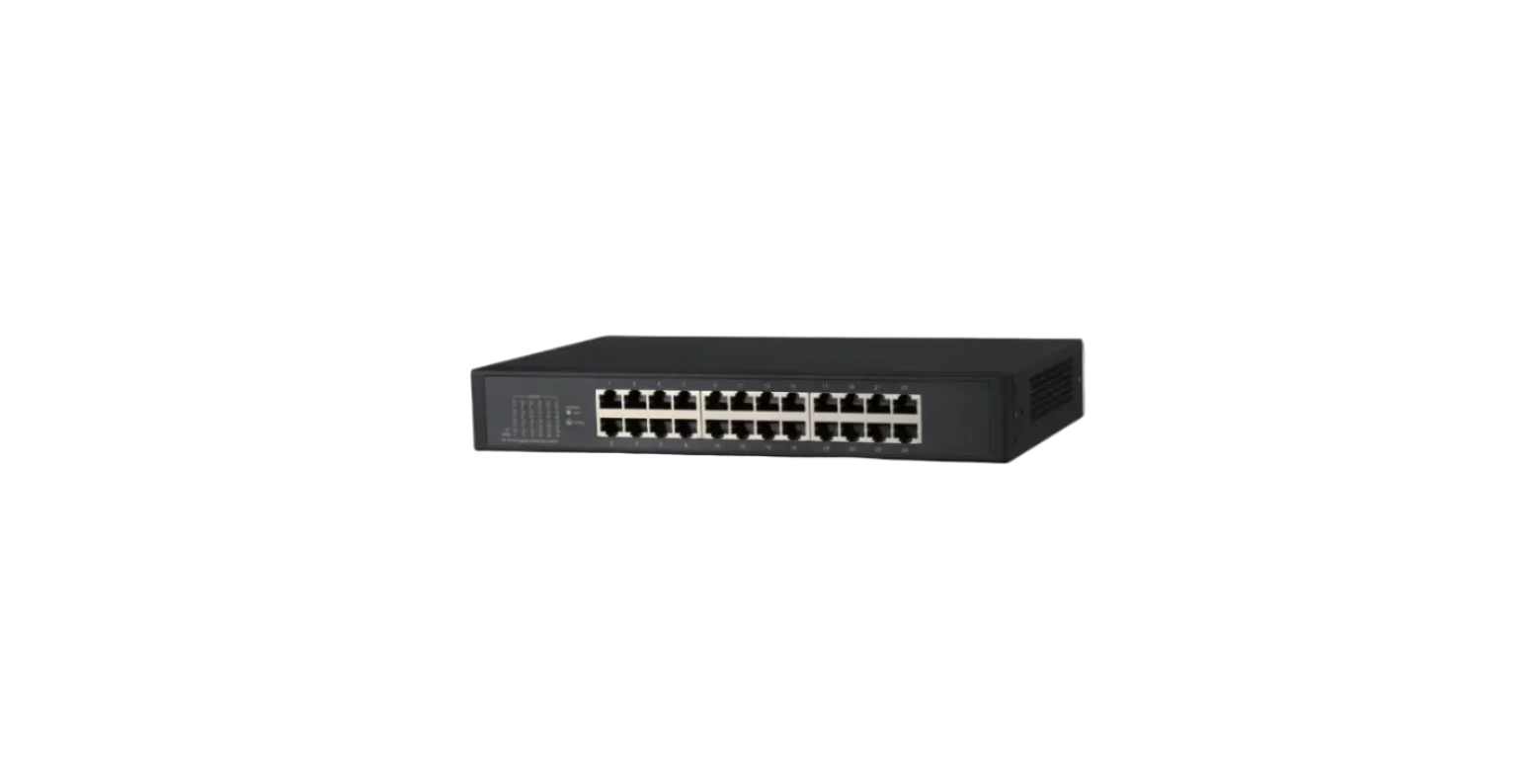

Dahua DH-PFS3024-24GT 24-Port Unmanaged Gigabit Switch

Dahua 24-Port Gigabit Switch (Unmanaged)
DH-PFS3024-24GT
FEATURES
• The Dahua DH-PFS3024-24GT offers 24 × 10/100/1000 Mbps Gigabit Ethernet ports with 48 Gbps switching capacity and 35.7 Mpps forwarding rate, ideal for high-throughput surveillance networks without configuration.
• Store-and-forward architecture, 2 MB buffer, 8K MAC table, and metal enclosure provide reliable performance with excellent heat dissipation and lightning protection (6 kV common mode, 0.5 kV differential).
• Universal AC 100-240V power (50/60 Hz), fanless for silent operation at 0°C to +40°C.
• Rackmount/desktop 1U form factor (294 × 178 × 44 mm, 1.43 kg) for versatile installs.
• IEEE 802.3 standards compliance; no PoE, perfect for NVR uplinks or camera extensions.
• Scale your IP CCTV seamlessly with the Dahua DH-PFS3024-24GT: 24 Gigabit ports, 48 Gbps capacity, and surge protection for lag-free video transmission.
• Plug-and-play unmanaged design in a durable metal chassis—suited for Australian business racks or large home setups.
• Quiet, efficient, and robust.

• Layer 2 unmanaged access switch
• All gigabit Ethernet ports
• Lightning protection
• Plug and play
• Adopts metal enclosure
• Good heat dissipation

Data Sheet PDF
