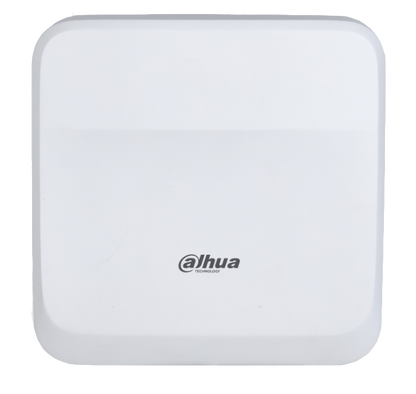

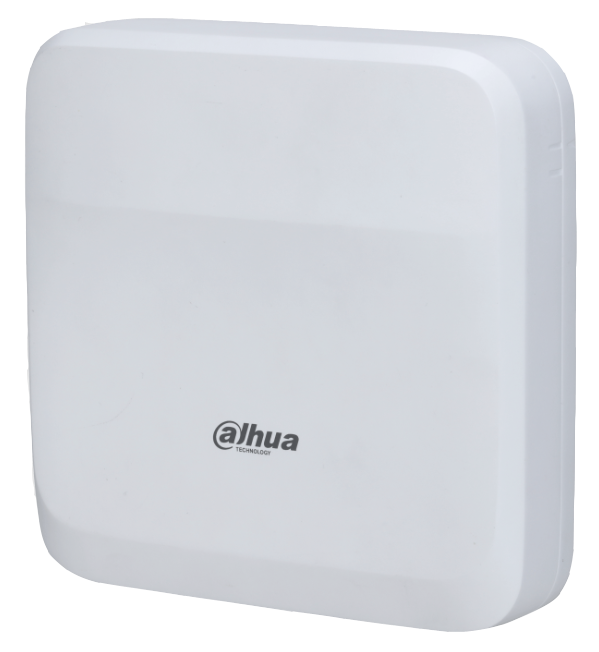

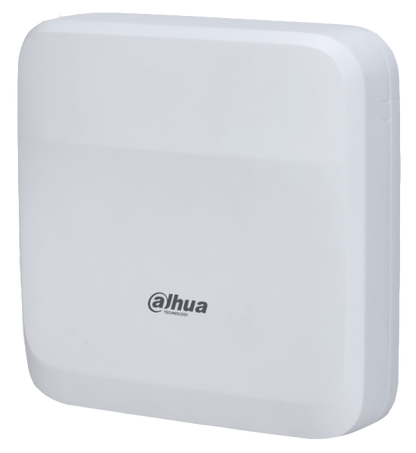

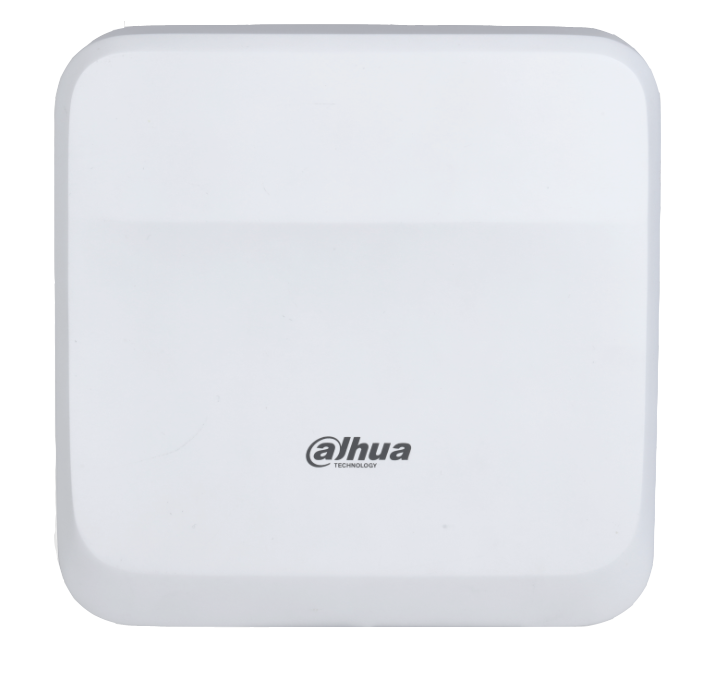

Dahua DHI-ASC3202B Access Controller

Dahua Access Controller
DHI-ASC3202B
FEATURES
• Built-in Web server, features main and sub control modes.
• The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers.
• The sub-control modes can be added to multiple platforms.
• Supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode) and 300,000 records.
• Accesses card readers through Wiegand and RS-485 protocols.
• Supports TCP and IP connection, and standard PoE.
• Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
• Supports configuring the hardware I/O port and exporting configuration diagrams.
• Retains stored data even while powered off.
• Role management.
• Supports multiple advanced access control functions, such as first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.
