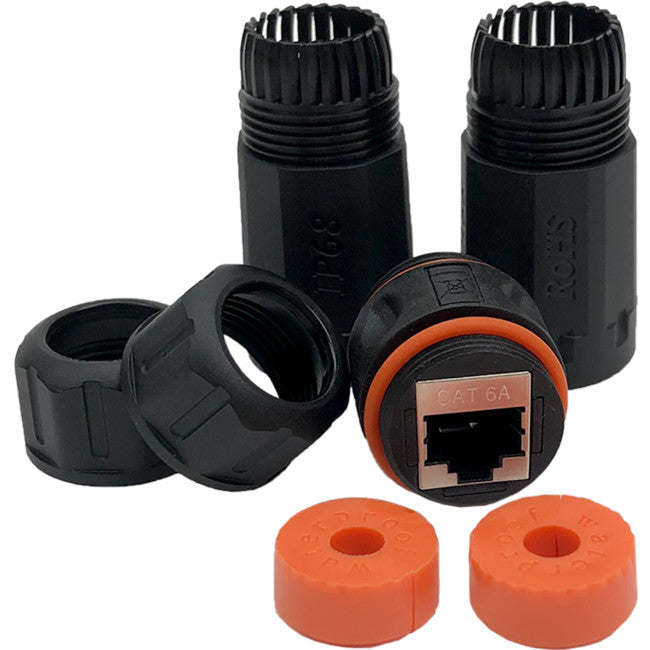

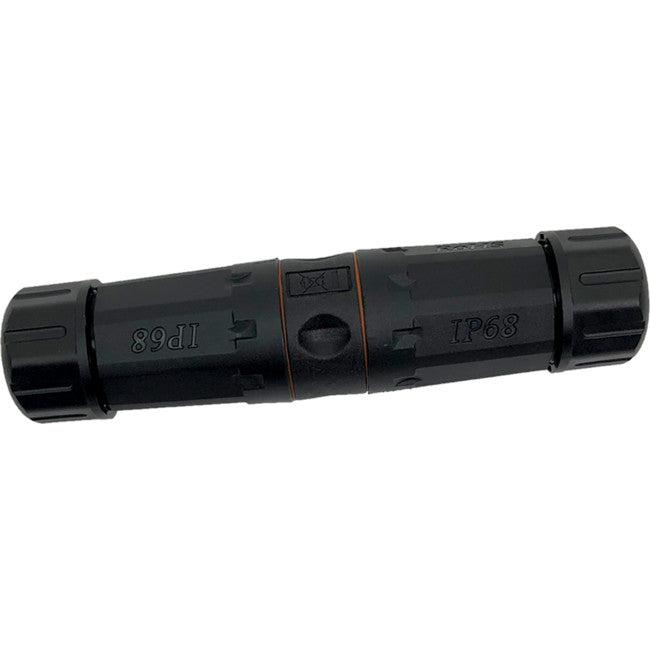

Doss WPCAT6J CAT6A Waterproof RJ45 Connector Joiner
Doss WPCAT6J CAT6A Waterproof RJ45 Connector Joiner
SKU:WPCAT6J
In stock
Couldn't load pickup availability
Doss CAT6A WATERPROOF RJ45 JOINER
WPCAT6J
FEATURES

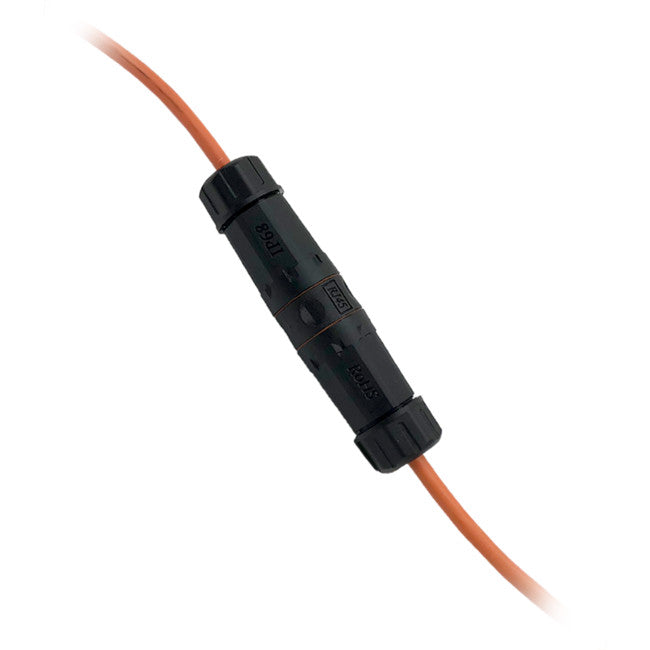

• Cat6 or Cat6A RJ45 inline coupler joins two premade patch leads together
• Easy to assemble
• IP68 waterproof rating
• Voltage rating: 125VAC RMS
• Current rating: 1.5Amp
• Contact resistance: 100 milliohms Max
• Insulation resistance: 1000 Megohms Min @500VDC
• Dielectric strength: 750 VAC RMS 60Hz, 1 Min
• Storage: -40°C to 85°C
• Operation: 0°C to 70°C
• Housing material: PA66
• Insert material: Flame Retardancy PBT
• PCB material: FR-4 T=1.6mm
• RJ45 jack contact: Phosphor bronze with nickel plating gold plated 50U
• RJ45 jack life: 750 times minimum
• Waterproof grade: IP68
• Cable OD: 5-7.5mm
-
