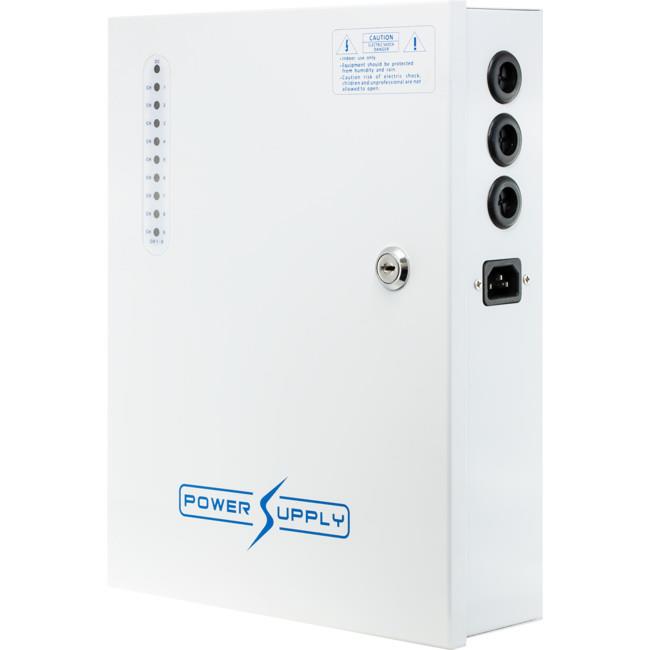

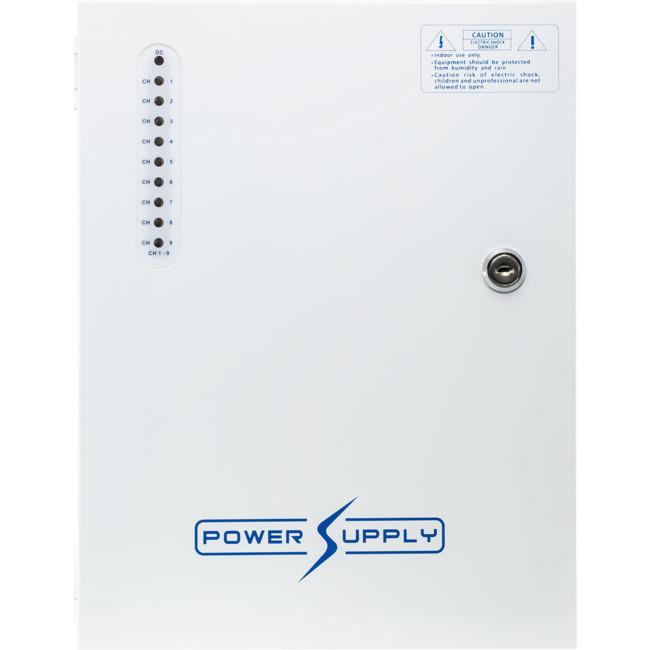

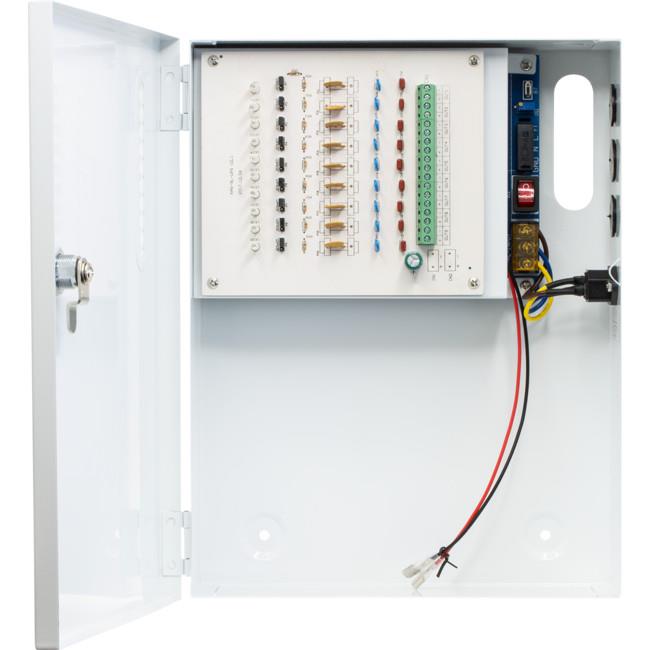

DOSS PWU0912W10 9 Way 13.8VDC 10A Power Supply with Battery Space

DOSS PWU0912W10 9 Way 13.8VDC 10A Power Supply with Battery Space
FEATURES
• Full AC input range: 100~240V.
• Withstand 300VAC surge input for 5 seconds.
• Protection: short circuit / overload / over voltage / over temperature.
• Forced air cooling by built in DC fan when the current exceeds 12A.
• Built-in cooling fan controlled by thermal-switch.
• Withstand 5G vibration test.
• Multiple DC outputs, and each channel has over current (PTC/Tube fuse) and surge protection.
• LED indicators show working condition of each channel and indicator for total output power on.
• 100% full burn-in test: full load burn-in test at low voltage AC110V, no-load burn-in test at high voltage AC240V and repeated switch of AC power at high voltage AC240V.
• High operating temperature is up to 70°C.
• Operating altitude is up to 5000 meters
• High efficiency, long service life, high reliability.
• Box Dimensions: 245mm(W) x 319mm(L) x 80mm(D)
• Weight: 3kg
