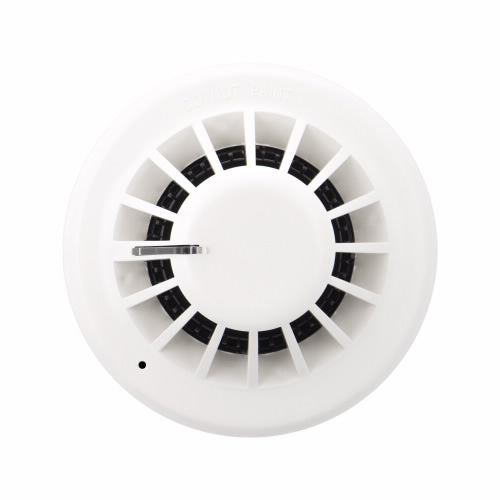

Firecat 400001FULL-0001 Photo Thermal Smoke Detector + Relay Base White with Led Indicator 12vdc

Firecat Photo Thermal Smoke Detector + Relay Base White with Led Indicator 12vdc
400001FULL-0001
Features
• Can Only Be Used As A Secondary Smoke Detector
• Conventional detector
• Optical
• EN54 Systems
• White Plastic
• 12 volt
• Firecat
• Length : 100 mm
• Height: 44 mm
• Width: 100 mm
• Weight: 0.076 kg
• Warranty: 3 year

• The Firecat is an extremely flexible fire sensor for use with security or other systems operating at 12Vdc.
• The unit can be configured to operate either as an optical, optical-heat, rate of rise heat or fixed temperature heat sensor via selection switches at the rear.
• The sensor's output is via a relay with volt free contacts, which can be set to latch or auto reset from the alarm condition.
• The sensor is also self monitoring so that in the event of a chamber failure or reaching the limit of its contamination compensating facility the LED will illuminate continuously yellow.

Data Sheet PDF
