MS2X4

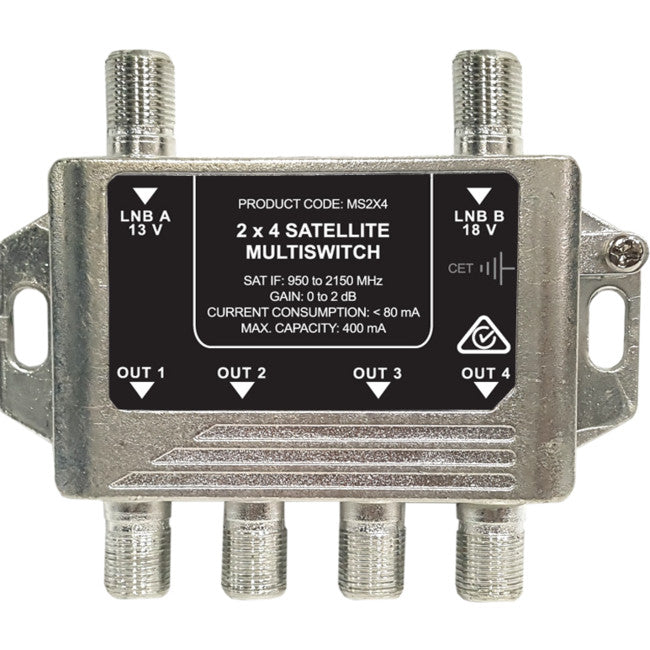

Jonsa Multiswitch 2 Wire 4 Out - Foxtel Approved F30931
FEATURES
• For 4 subscribers or 2 IQ subscribers
• Remote powered by satellite receiver
• The IF polarity selection is controlled by the remote voltage provided by the receiver: < 14.5 V = Vertical & > 15.5 V = Horizontal
• Inputs 2
• Outputs / Subscribers 4
• Through Loss: SAT-IF: 950 ... 2150 MHz 0 ... 2 dB
• Isolation: Input = 25 dB [Typ. 26 dB]
• Isolation: Switching = 25 dB [Typ. 26 dB]
• Current Consumption < 80 mA
• Capacity (IF Ports) Max 400 mA
• Ambient Temperature - 20 ... 50 C
• Dimensions (W x D x H mm) 89 x 72 x 16 mm
-
