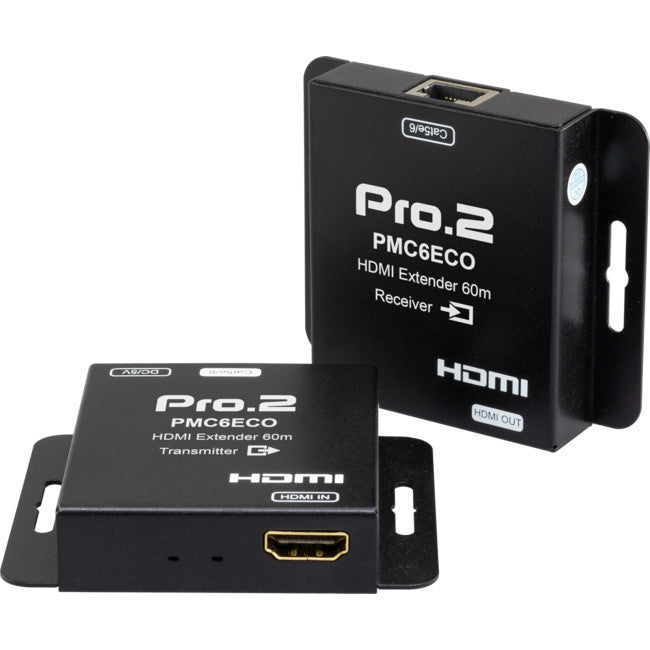

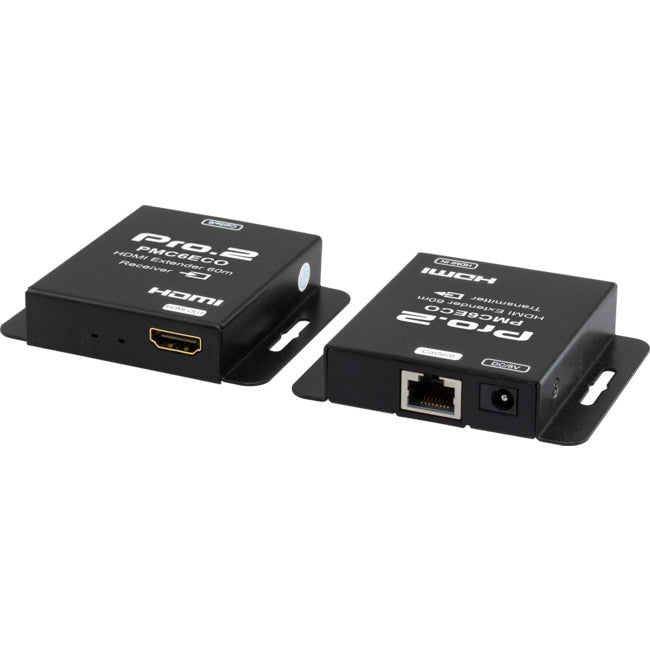

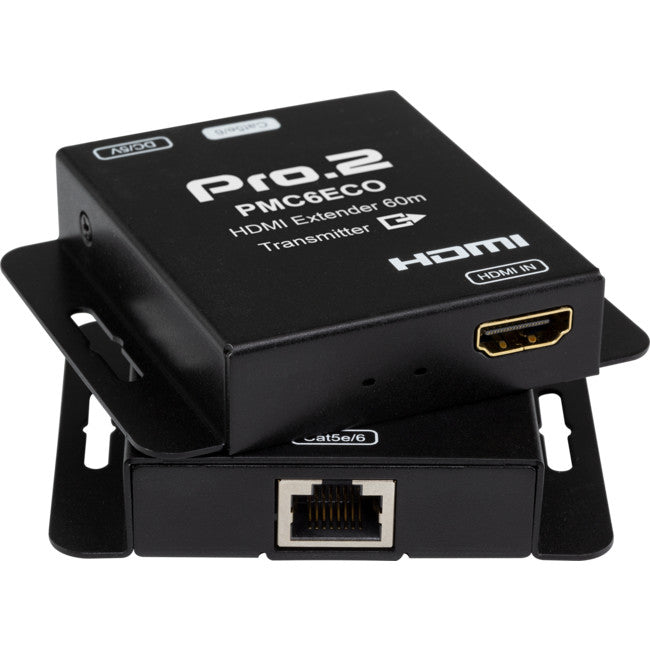

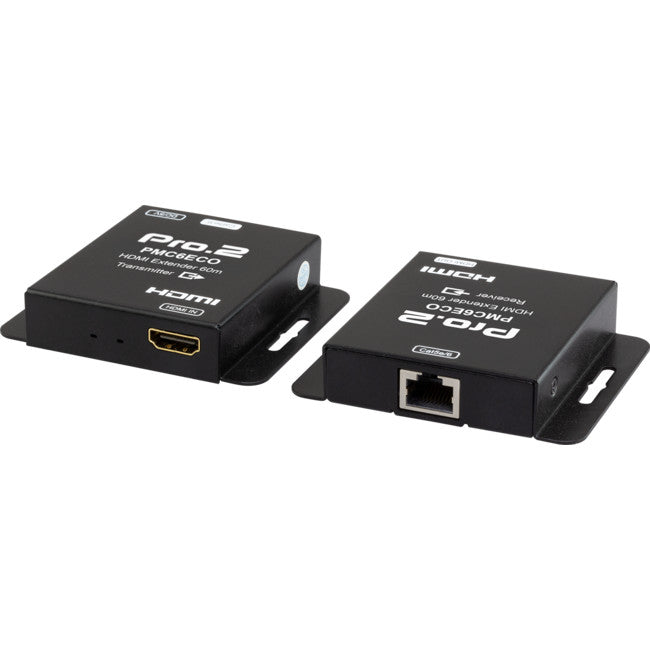

PRO.2 PMC6ECO HDMI Over Single CAT6 Extender

PMC6ECO
PRO.2 HDMI Over Single CAT6 Extender
FEATURES
• EDID: Default 1080p pre-set resolution for standard Full HD
• LPCM 2.0 48KHz audio
• POC (Power over cable) receiver powered by transmitter
• Distance: 60m
• Plug and play with surface-mount design
• High-definition resolution up to Full HD 1080p@60hz YUV4:4:4
• Supports 3D
• Operating Temperature Range:0 to 40°C (32 to 104°F)
• Operating Humidity Range:5 to 90%RH (No Condensation)
• Input Video Signal: 0.5-1.0 Volts P-P
• Input DDC Signal:5 volts p-p (TTL)
• Supported Video Formats: DTV/HDTV:720P/1080i/1080P, 3D video
• Video Output: HDMI, HDCP 1.4
• Support Audio Format: LPCM 2.0 48Khz
• Transmission Distance: up to 60m with single CAT5e/6
• Power consumption: 2 watts (Maximum)
• Power supply: 5V 1A DC
• Dimensions: 79.3 (W) x 68 (D) x 16.5 (H) mm
• Net Weight: 232g

INCLUDES
• PMC6ECO Main Unit:
• 1x Transmitter & 1x Receiver
• 1x 5V 1A DC power supply
• 1x User Manual
