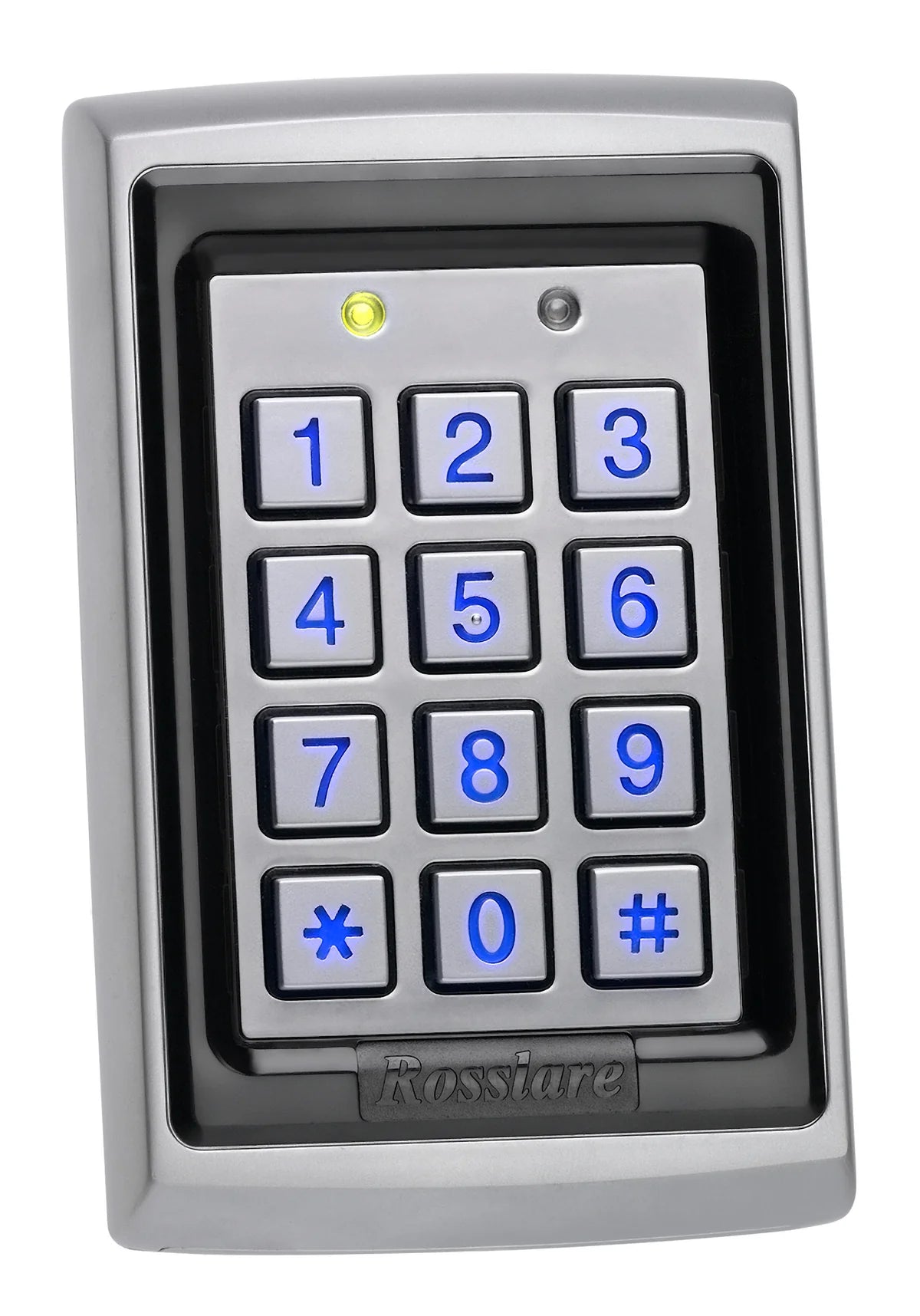

Rosslare AC-Q42SB Anti-Vandal 3x4 Backlit PIN & Prox Standalone Keypad

Rosslare AC-Q42SB — Anti-Vandal 3×4 Backlit PIN & Proximity Standalone Keypad

A rugged, all-in-one standalone access controller combining a backlit 3×4 keypad with a built-in 125 kHz EM proximity reader. No control panel required — ideal for single-door applications in commercial, industrial, and residential installations.

Features

• Built-in 125 kHz RFID EM-format proximity card/fob reader
• 500 users — each assignable with PIN, RFID, or PIN + RFID dual-authentication
• Smooth anti-vandal construction with tamper-resistant housing
• Highly visible blue backlit 3×4 keypad for low-light environments
• 3 selectable security levels via special PIN codes
• Supports up to 8-digit PIN codes; timed lockout after 3 incorrect attempts
• 2 tri-colour LEDs + integral sounder for status indication and programming feedback
• Wide-range low-voltage AC/DC power input
• Optical tamper detection output
• Automatic internal heater — prevents key freeze down to −20 °C (−4 °F)
• 10 programmable modes for auxiliary input and output (2 A Form C relay)
• Supports Door Ajar, Forced Entry, Shunt, Monitor, and Secure operating modes

Compatible Credentials

The AC-Q42SB reads 125 kHz EM-format proximity credentials. Compatible card and fob types include:

• EM4100/EM4102 proximity cards (standard credit-card size)
• EM-format key fobs
• Any 125 kHz EM-compatible credential from Rosslare or third-party suppliers

Note: Not compatible with 13.56 MHz (MIFARE/HID iCLASS) credentials. Confirm your existing card technology before purchase.

Power Requirements

• Input: 8–30 V AC or 8–28 V DC
• Current draw: approx. 100 mA (standby) — confirm against your PSU rating
• Wide-range input accepts most standard access control power supplies
• Suitable for use with 12 V or 24 V DC systems commonly used in AU/NZ installations

Relay / Output Use Cases

The built-in 2 A Form C relay can switch a broad range of electric strikes, magnetic locks, and door controllers directly:

• Electric strikes — fail-secure or fail-safe (check strike voltage/current draw)
• Magnetic locks (maglocks) — via relay + appropriate fail-safe wiring
• Electric bolt locks
• Auxiliary outputs — alarm panels, lighting circuits, gate controllers
• Tamper output — connect to alarm panel for anti-tamper monitoring

10 programmable auxiliary modes let you tailor output behaviour (timed, toggle, momentary, monitor) to your installation.

Dimensions & Housing

• Form factor: Slim surface-mount, single-gang compatible
• Housing: Die-cast zinc alloy (anti-vandal)
• Ingress protection: IP65 (dust-tight, water jet resistant) — suitable for outdoor or harsh indoor environments
• Operating temperature: −20 °C to +60 °C (−4 °F to +140 °F)
• Colour: Dark grey / charcoal

Refer to the Rosslare AC-Q42SB datasheet for exact PCB and cut-out dimensions.

Installation Environment

• Indoor: Offices, server rooms, stairwells, reception areas
• Outdoor: Building entrances, car park barriers, gates — IP65-rated housing withstands rain and dust
• Harsh environments: Internal heater prevents keypad freeze to −20 °C; suitable for cold-store or unheated external installations
• Mounts on standard single-gang back box or surface conduit box
• Wiring: Requires power, door strike/lock output, and optional alarm/tamper connections

What's Included

• 1 × Rosslare AC-Q42SB keypad/reader unit
• Mounting hardware (screws and back plate)
• Quick installation guide / programming guide

Door hardware (electric strike, maglock, PSU, cabling) sold separately.

Ordering Information

SKU / Model	AC-Q42SB
Brand	Rosslare Security Products
Barcode (EAN)	4897027889345
Price (AUD)	$215.00 (RRP $275.00)
