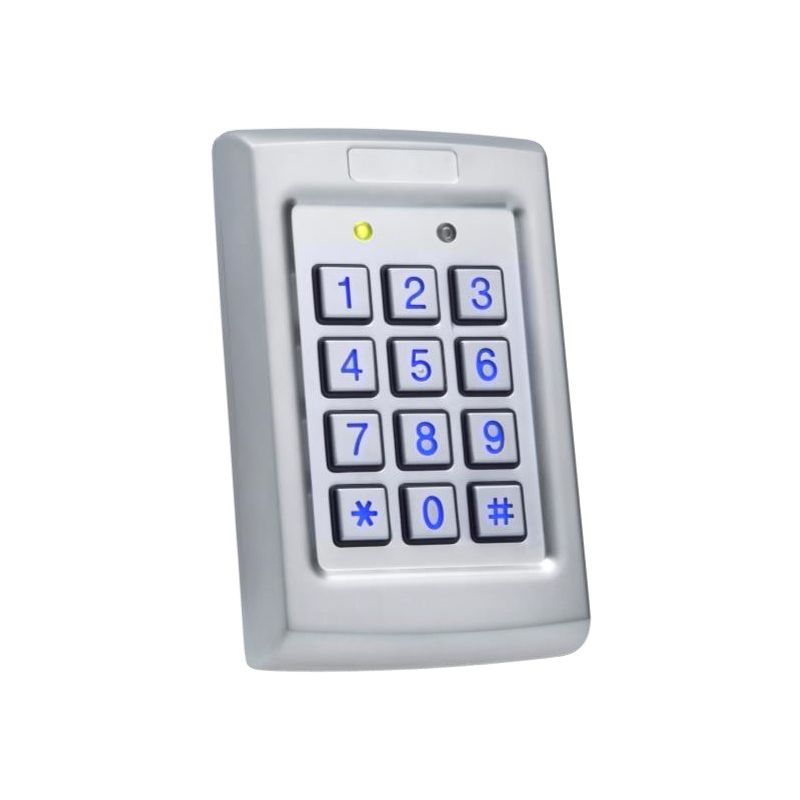

Rosslare AC-Q41SB Anti-Vandal Slim Backlit Pin Standalone Controller backlit

Rosslare Standalone Keypad with Mechanical Illuminated Keys
AC-Q41SB
Features
• Anti-Vandal Stainless Steel Construction
• Selectable 4, 6, 8 Digit mode’s
• Stainless Steel Blue illuminated keys
• 500 single or dual-code users
• 2 × Relay outputs (Com, NO, NC) Max 2 amp
• 2 × Inputs / REX & AUX Monitor
• 2 Menu navigation & Operation LED’s
• Local programming menu
• 3 user levels and 3 security levels
• Optical tamper
• Built-in heater for low temperature environment
• Fully potted (Epoxy filled & sealed)
• Water Resistant IP65
• Operating temp -20°C – 60°C
• 12 ~ 24V AC or 12 ~ 24V DC input
• Dimensions (mm): 120 (H) × 76 (W) × 22 (D)

Click here for Data Sheet PDF
