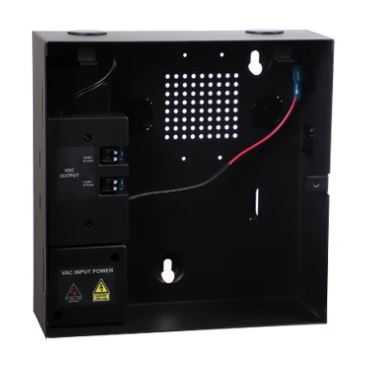

Rosslare ROSME-0515 Multi Purpose Switch Mode Power Supply With Enclosure

ROSME-0515
Rosslare Multi Purpose Switch Mode Power Supply With Enclosure
FEATURES
• Multipurpose wall-mountable power management enclosure that contains a switchmode power supply and a PM-05 power management module.
• The switch mode power supply has a universal power input range of 100 – 240 VAC, 50/60 Hz, 1.5A AC input, and supplies a 15V DC, 4A output to the PM-05 power management module.
• The PM-05 has two independent power output channels each with an isolated PTC (self-resetting fuse) that can be connected to any device of your choice.
• Battery backup is available and upon AC power failure, the PM-05 module instantaneously (UPS) switches power to a standby 7AH sealed lead acid battery (not included).
• Global input voltage – 100 VAC to 240 VAC 50/60Hz auto select. Rosslare can provide versions with C13 power plugs for any country
• Delivers two isolated 12 VDC power @ 2 Amp output channels with PTC resettable fuse (4 A total)
• Wall mountable with external connection for AC power input, and internal charger connected to battery backup
• Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket
