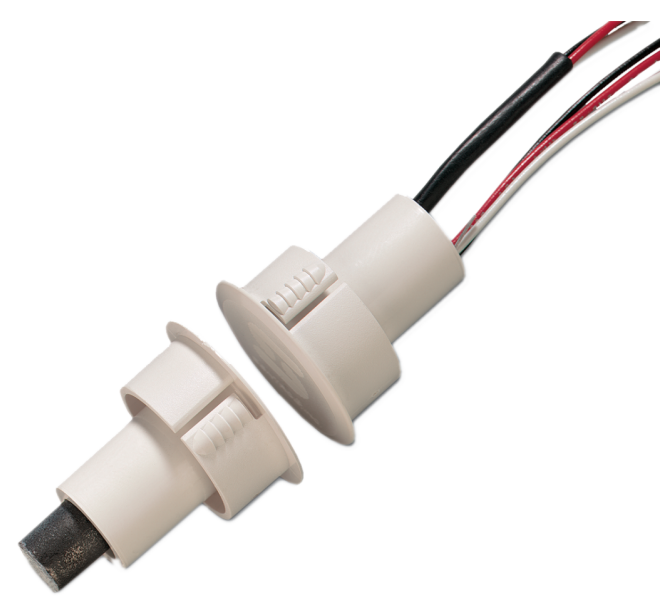

Sentrol SEN1078C-N Hardwired Reed Switch White Detection Gap 9.52mm 1x N/C Output (Dry) Plastic Recessed Mount 18.8mm Hole Cutout

SEN1078C-N
Sentrol Hardwired Reed Switch White Detection Gap 9.52mm 1x N/C Output (Dry) Plastic Recessed Mount 18.8mm Hole Cutout
FEATURES
• Special design for steel mounting
• Self-lock mounting
• Rugged construction
• Attactive, added security of recessed installation

Steel door applications
The Sentrol 1078(C/T) series steel door contacts are designed
specifically for use in the steel doors commonly found in commercial
building applications. Many models including, wide gap, SPDT and
biased for high security applications make the 1078 series the most
widely used and comprehensive line available.

Easy Installation
The unique housing design features a rugged body construction with
flexible ribbed sides for quick, secure installation without gluing. The
magnet housing isolates the magnet from the surrounding steel for
maximum gap distances, both make and break.

Durability and dependability
The Sentrol high performance magnetic contacts have been designed
to facilitate installation and ensure durability and dependability. Most
are conservatively rated at 10,000,000 cycles, guaranteeing a long life.
Every reed connection is hand soldered and each magnetic contact is
tested before they leave the factory, 100% of the time.

High quality components and materials
Reed legs are plated with rhodium or ruthenium, and hermetically
sealed in dry nitrogen.
