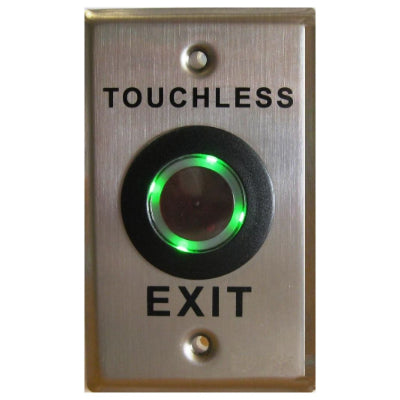

WEL WEL3761S Stainless Steel Illuminated Touchless Exit Button

WEL3761S
Stainless Steel Illuminated Touchless Exit Button
FEATURES
• The switch can be activated by a simple hand wave or approach - sanitary and easier access
• No moving parts
• Fully waterproof IP67 rated
• Compact design - can be easily fitted into a surface mounting box
• Dual colour LED illumination
• Two isolated relay outputs NO and NC - can be used to drive strikes or magnet/electric relay locks directly
• Output timer selectable: 2 or 10 seconds
• Stainless steel Plate
• Input voltage: 12VDC; power connector 24VAC to 12VDC available
• Current: 18mA standby; 50mA activation
• Output: isolated NO and NC; 1A 30VDC
• Dimensions: 70 (w) x 115 (h) x 26 (d)mm
• Touchless button WEL3761 is uniquely designed for the application where sanitary conditions are needed, like hospitals, cleanrooms, food processing factories and laboratory.
• It also provides much easier access for the disabled to open doors through a sensor.
