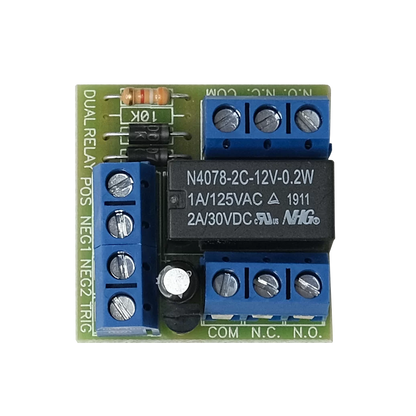

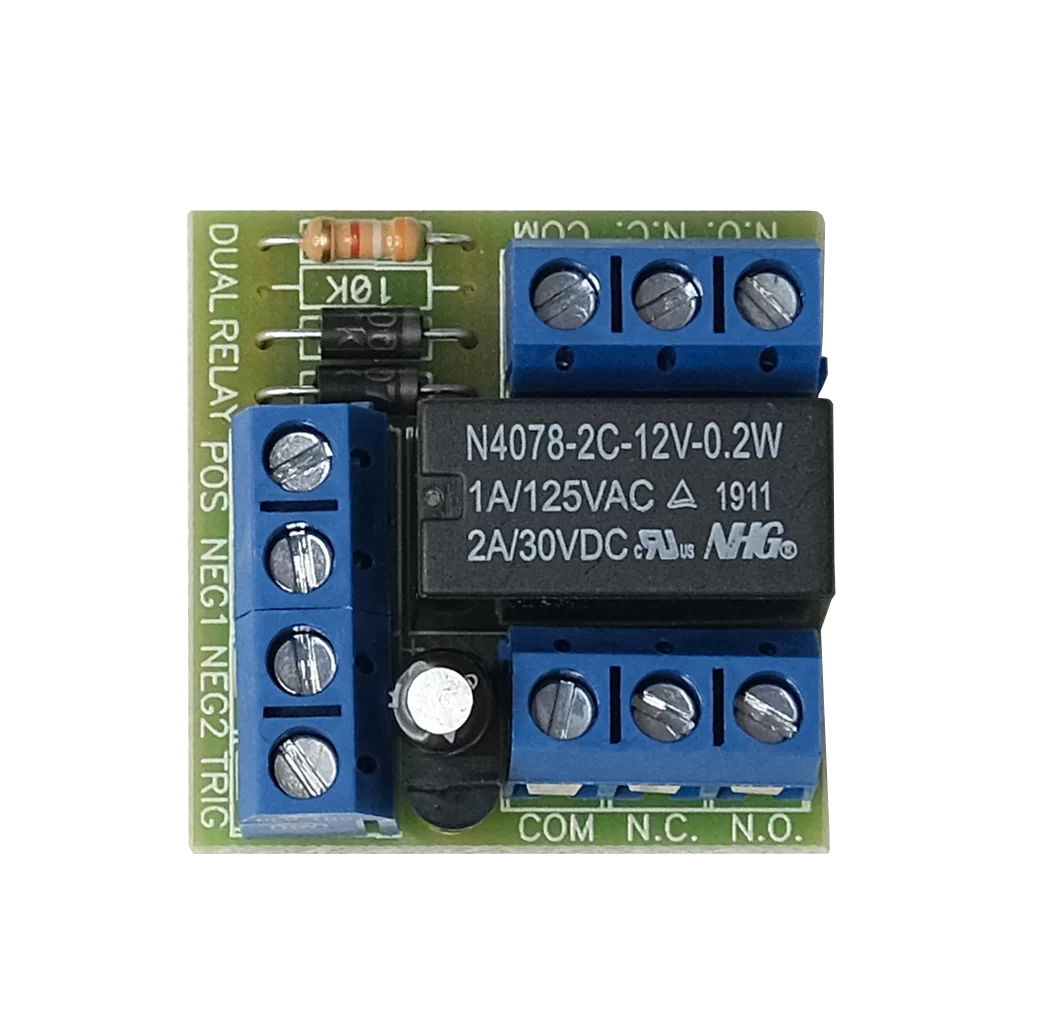

Universal Relay Card DPDT 12DC/16VAC Relay low voltage trigger # KE01-002-A-RELAY

Universal Relay Card DPDT 12DC/16VAC Relay
KE01-002-A-RELAY

Application
• To switch high voltage/current device from a low voltage.
• Perform dual task from single trigger.

Specifications
• 12v DC or 16v AC operation.
• Dual normally open and closed potential free relay contacts.
• Low current 20mA when energised.
• Current rating 1A@ 30v DC.
• 1v transistor trigger option, 12v DC supply only.
• Reverse polarity protection.
• Physical size: 32mm x 32mm.

Wiring Diagram
• COM N.C. N.O.
• +12v DC or 16v AC
• -12v DC or 16v AC
• -12vDC if low voltage trigger is used Low voltage + trigger
• COM N.C. N.O.

Installation
• Connect trigger voltage and load.
• POS and NEG used for normal voltage trigger.
• POS, NEG2 and TRIG used with low voltage trigger.
• Relay will energise when voltage is applied to trigger
