Universal Relay Card SPDT AC /DC Relay 12VDC or 16VAC input # KDMKE01-001-A

Universal Relay Card SPDT AC /DC Relay 12VDC or 16VAC input # KDMKE01-001-A

KDMKE01-001-A

$40.00
$40.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock

Electronic Security Wholesalers (ESW) Logo

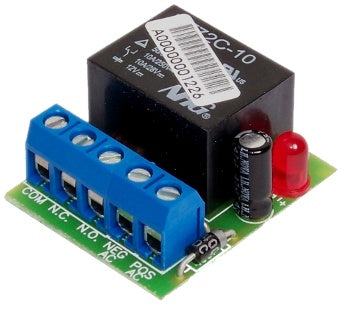

Universal Relay Card SPDT AC /DC Relay 12VDC or 16VAC input
KE01-001-A

Application
• To switch high voltage/current device from a low voltage/current trigger.
• ACDC Relay on Board

Specifications
• 12v DC or 16v AC operation.
• Normally open and closed potential free relay contacts.
• Low current 20mA when energised.
• Switching current rating 10A@ 12v DC.
• LED indication.
• Reverse polarity protection.
• Back EMF protection.
• Physical size: 34mm x 29mm.

Wiring Diagram
• Common relay contact
• N.C. relay contact
• N.O. relay contact
• -12v DC or 16v AC
• +12v DC or 16v AC

Installation
• Connect trigger voltage and load.
• Relay will energise when voltage is applied to trigger.
• LED indicates relay status.
